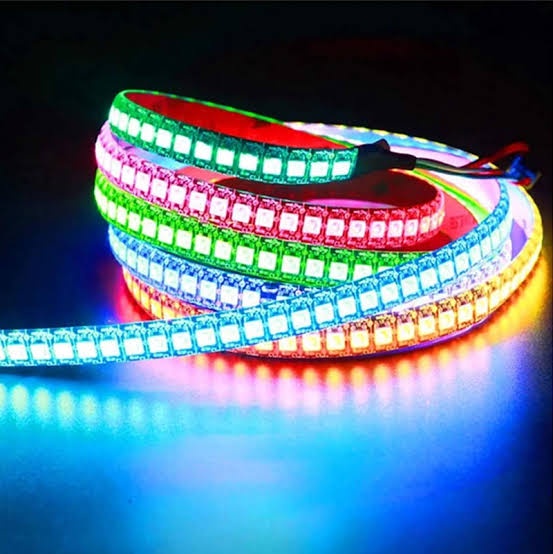

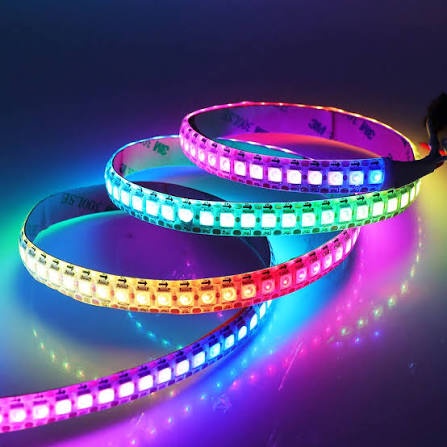

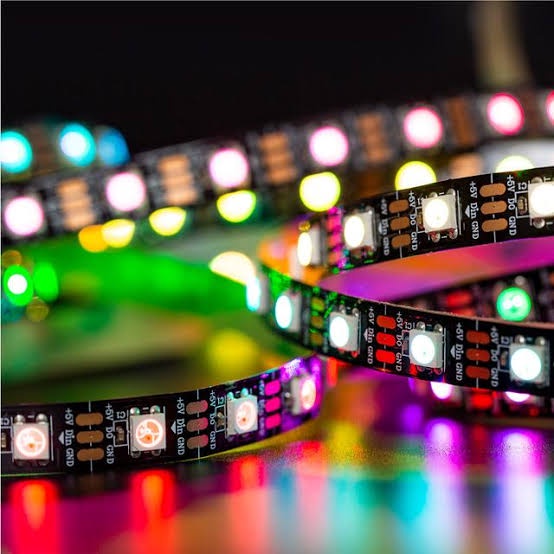

Premium WS2812 Addressable RGB LED Strip - 60 LED/m (5V, IP20, 5-Meter Reel)

Unlock limitless lighting possibilities with the WS2812 Addressable RGB LED Strip. Unlike standard RGB strips where all LEDs display the exact same color, this "smart" strip features a built-in controller IC inside every single 5050 SMD LED. This allows you to control the color and brightness of each pixel individually, enabling stunning fluid animations, chasing effects, smooth color gradients, and dynamic, music-reactive light shows.

With a high-density layout of 60 LEDs per meter and a standard 10mm width, this 5-meter reel delivers a bright, continuous glow that fits perfectly into standard lighting channels for immersive ambient lighting, smart home integrations, and custom DIY maker projects.

Key Features

  1. Individual Pixel Control: Every single LED is fully addressable. Create complex visual effects and custom color mapping using popular microcontrollers like Arduino, ESP8266, ESP32, or dedicated smart controllers (like WLED or SP-series).
  2. Standard 10mm Profile: The PCB is exactly 10mm wide, making it universally compatible with most standard aluminum LED channels, diffusers, and quick-connectors for a clean, professional installation.
  3. High LED Density: Featuring 60 LEDs per meter (300 LEDs total across the 5m reel), this strip minimizes the "dot" effect and provides incredibly smooth light diffusion.
  4. Cuttable & Flexible: The flexible PCB can be cut exactly to your desired length between every single LED without damaging the rest of the strip, making it perfect for custom-sized projects.
  5. Easy Installation: Comes pre-fitted with 3-pin JST-SM connectors on both ends for easy daisy-chaining, plus extra power/ground wires for power injection. The back features strong double-sided tape for quick mounting.
  6. IP20 Indoor Rated: The non-waterproof, bare-board design allows for maximum flexibility, easy cutting, and excellent heat dissipation for indoor applications.

Technical Specifications

SpecificationDetail
IC ModelWS2812 / WS2812B (Built into LED)
LED Type5050 SMD RGB
LED Density60 LEDs / Meter (300 LEDs total)
Strip Width10mm
Operating Voltage5V DC (Strictly 5V; 12V will destroy the strip)
Max Power Consumption~18W per meter (at full white brightness)
Total Length5 Meters (16.4 ft)
IP RatingIP20 (Non-waterproof, for indoor use only)
Data Protocol3-Wire System (VCC, Data, GND)

Common Applications

The WS2812 is the gold standard for custom RGB setups. It is widely used for PC case modding, custom arcade cabinets, bias lighting behind TVs and monitors (Ambilight clones), architectural edge lighting, and smart home lighting running open-source software like WLED or FastLED.

Engineering Pro-Tip: Because this strip operates on 5V and has 300 LEDs, it draws a significant amount of current at full brightness (up to 15A - 18A for the whole reel). To prevent "voltage drop" (where the LEDs at the end of the strip look dim or yellowish/reddish), you must use a high-capacity 5V power supply and inject power at both ends of the 5-meter reel.
