SG90 Micro Servo 180 Degree

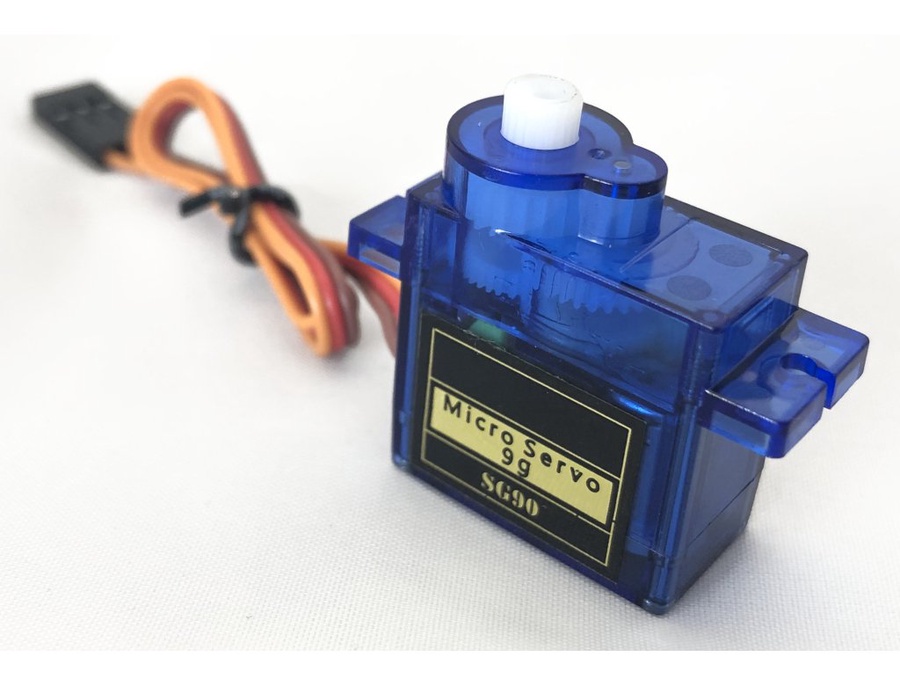

TowerPro SG90 9g Micro Servo Motor (180° Rotation)

Overview:

The SG90 9g Micro Servo Motor is the world's most popular lightweight servo for hobbyists, students, and DIY makers. Offering precise $180^\circ$ angular positional control, this compact motor is perfect for beginner-to-advanced electronics projects that require controlled mechanical movement. Whether you are building an automated robot arm, a smart lock mechanism, or a pan-and-tilt sensor mount, the SG90 delivers reliable performance at a budget-friendly price.

Key Features:

1. Precise $180^\circ$ Positional Control: Rotates accurately between $0^\circ$ and $180^\circ$ based on pulse-width modulation (PWM) signals.
2. Ultra-Lightweight & Compact: Weighs only 9 grams, making it ideal for weight-sensitive applications like RC planes and small robotics.
3. High Compatibility: Connects directly to Arduino, Raspberry Pi, ESP32, and standard RC receivers using a standard 3-pin connector.

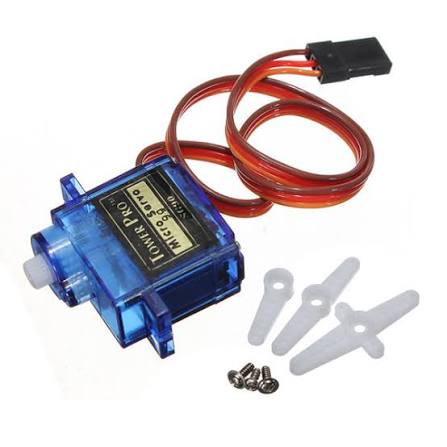

4. Complete Hardware Pack: Includes 3 distinct servo arms (horns) and mounting screws to fit various mechanical linkages.

Technical Specifications:

1. Model: SG90
2. Rotation Angle: $180^\circ$ Positional
3. Gear Type: Nylon Plastic
4. Operating Voltage: 4.8V – 6.0V
5. Stall Torque: 1.8 kg·cm (at 4.8V)
6. Operating Speed: 0.12 sec/60 degrees (at 4.8V)
7. Dimensions: 22.2 x 11.8 x 31.0 mm
8. Weight: 9 grams
9. Connector Wire Length: 25 cm (Standard 3-Pin PWM)

Common Applications:

1. Robotic Arms, Grippers, and Biped Walking Robots
2. Pan-and-Tilt Ultrasonic/Camera Mounts
3. Smart Home Automation (Automatic Door Locks, Blinds Control)
4. RC Airplanes, Helicopters, and Boats
