L298 Motor Driver Module

L298N Dual H-Bridge Motor Driver Module

Power your robotics and automation projects with the L298N Dual H-Bridge Motor Driver Module. Designed for seamless integration with microcontrollers like Arduino and Raspberry Pi, this module allows you to independently control the speed and direction of two DC motors or a single bipolar stepper motor, making it an absolute essential for any mobile robotics chassis.

Key Features

1. Dual Motor Control: Independently drive two DC motors simultaneously, allowing for complex maneuvers like differential steering in robotic cars.
2. High Power Capacity: Built around the rugged L298N chip, it handles up to 2A of continuous current per channel, providing enough torque for standard hobby motors.

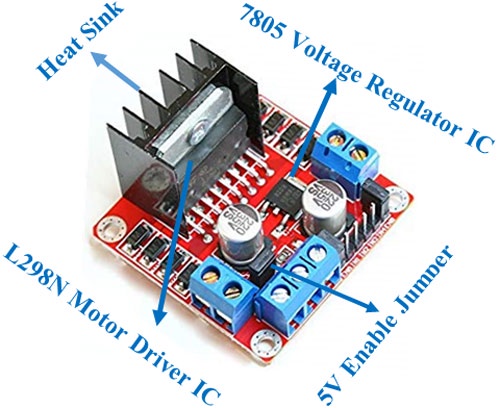

3. Built-in 5V Regulator: Features an onboard 5V voltage regulator that can be used to power your microcontroller directly from the motor's power supply, drastically simplifying your wiring setup.
4. Thermal Protection: Comes equipped with a heavy-duty aluminum heatsink to dissipate heat efficiently, preventing thermal shutdown during heavy loads and extended use.

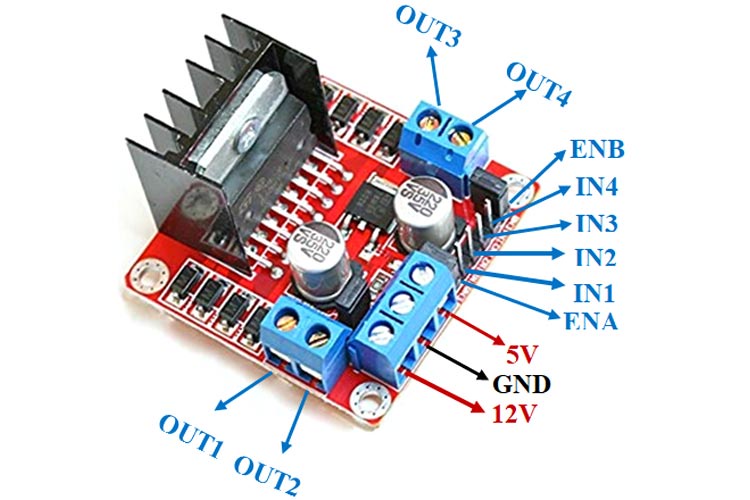

5. Easy Interface: Standard terminal blocks for power and motors, along with standard header pins for logic control, make breadboarding and final assembly straightforward.

Technical Specifications

⚡ Power & Current

1. Logic Voltage: 5V
2. Drive Voltage: 5V to 35V
3. Maximum Drive Current: 2A (per channel)
4. Maximum Power Dissipation: 25W

⚙️ Control & Logic

1. Control Chip: L298N Dual H-Bridge Driver
2. Supported Motors: 2x DC Motors OR 1x Bipolar Stepper Motor (2-Phase/4-Wire)
3. Control Interface: Standard TTL Logic Level

Ideal For

1. Robotic Vehicles: Perfect for building 2WD or 4WD smart cars, line followers, and obstacle-avoidance robots.
2. Automation Mechanisms: Driving conveyor belts, automated curtains, or any project requiring precise rotational control.
3. Prototyping & Education: A foundational module for engineering students and makers learning about motor control logic.

Equip your workbench with the reliable power management of the L298N module, carefully selected for builders by Wasla Electronics.
